KAC BIPOD | KAC PRECISION BIPOD
KAC BIPOD | KAC PRECISION BIPOD

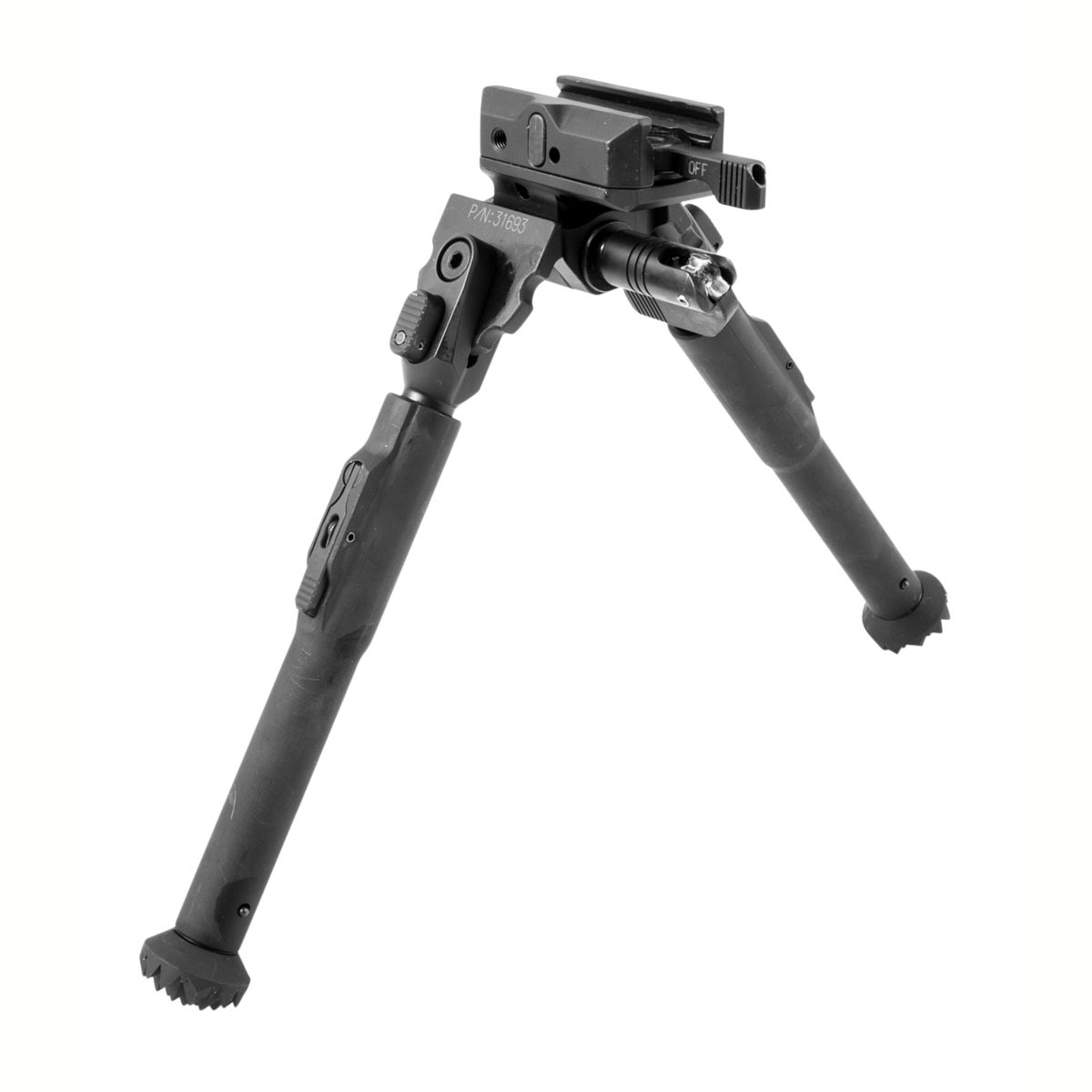

The Knights Armament Precision Bipod is a highly adjustable bipod with swivel and track capability. Bipod legs can be independently deployed to 6 positions: 0, 45, 67.5, 90, 135, and 180 degrees. Single push-button retention feature allows single-handed mounting and dismounting of the bipod.
Developed to meet the requirements of the US Army CSASS program, the Knights Armament Precision Bipod is a precision machined, highly adaptive bipod design that offers shooters unprecedented adjustability and control. The KAC Precision Bipod attaches easily and securely to any Mil Std 1913 Picatinny rail surface via a simple push button and locking lug arrangement, and incorporates locking legs that can be independently positioned from 90 to 270 degrees.
Additional features include adjustable leg height from 6.875 to 9.25 inches, removable feet (Atlas foot compatible), adjustable cant, adjustable yaw, and adjustable cant/yaw tension control. Intelligently designed and superbly executed, the KAC Precision Bipod packs a lot of performance into a compact, robust package.
KAC Bipod Features
- Push Button Attachment/Detachment
- 5 Position Independent Leg Height Adjustment, From 6.875″ to 9.25″
- 6 Position Independent Leg Angle Adjustment, From 90 to 270 Degrees
- Adjustable Cant and Cant Tension, Approx. 45 Degrees
- Adjustable Yaw and Yaw Tension, Approx. 40 Degrees
- Removable Feet (Serrated Aluminum Feet Included), Atlas Foot Compatible
- Lightweight Aluminum Construction
Knights Armament Company
Knight’s Armament Company (KAC) is an American firearms and firearms parts manufacturer, best known for producing the Rail Interface System (RIS) and the Rail Adapter System (RAS) grips for firearms use. They currently produce a variety of firearms, specifically rifles built on the AR-15 platform. One of their best known rifles is the SR-25 semi-automatic special application sniper rifle.
KAC is owned by C. Reed Knight and is based in Titusville, Florida. Knight’s Manufacturing Company (KMC) is the division of KAC responsible for products aimed at the civilian market.
The KAC SR-25 (Stoner Rifle-25)is a designated marksman rifle designed by Eugene Stoner and manufactured by Knight’s Armament Company.
The SR-25 uses a rotating bolt and a direct impingement gas system. It is loosely based on Stoner’s AR-10, rebuilt in its original 7.62×51mm NATO caliber. Up to 60% of parts of the SR-25 are interchangeable with the AR-15 and M16—everything but the upper and lower receivers, the hammer, the barrel assembly and the bolt carrier group. SR-25 barrels were originally manufactured by Remington Arms with its 5R (5 grooves, right twist) rifling, with twist 1:11.25 (1 complete turn in 11.25 inches or 286 millimeters). The heavy 24 in (610 mm) barrel is free-floating, so handguards are attached to the front of the receiver and do not touch the barrel.
First military purchase was spearheaded by the U.S. Navy in the early 1990s; the first operational deployment and use of the SR-25 sniper rifle was with U.S. Navy SEAL snipers supporting operations in Somalia in 1993.
Below is a list of Knight’s Armament current 7.62×51 lineup.
KAC SR-25 Articles
KAC SR-25 History
In the late 1950s, Eugene Stoner designed the AR-10 battle rifle to equip U.S. troops. It was accurate for an auto-loading rifle, but it lost the competition to the M14 rifle. The patent rights for the AR-10 and the AR-15 were sold to Colt’s Manufacturing Company. Colt focused on the AR-15, giving others the ability to capitalize on the AR-10 system.
In the early 1990s, Stoner joined Knight’s Armament Company. He continued his AR-10 design work and joined it with the direct gas system of the AR-15. The end result was the SR-25 (adding together the numbers of the AR-10 and AR-15) which improved the AR-10 design with M16A2 advancements and parts commonality. The original SR-25 was released in the early 1990s and had a heavy free-floating 24 in (610 mm) match grade barrel with a fiberglass handguard. It had a flat top upper receiver with a Mil-Std 1913 rail for mounting optics and a 2-stage match grade trigger. The bolt carrier was similar to the AR-10’s, being chrome plated and having a captive firing pin retainer pin. The SR-25 was designed specifically to fire 168 gr (10.9 g) open-tip match cartridges. Accuracy was guaranteed at or under 1 minute of angle. At first, AR-10 type 20-round magazines were used, but they were later replaced by steel 20-round magazines resembling those used by the M16.
The United States Special Operations Command took interest in the SR-25, particularly its high magazine capacity and faster engagement time compared to bolt-action rifles. After some modifications, SOCOM adopted the SR-25 as the Mk 11 Mod 0 in May 2000. Changes included a shorter 20 in (510 mm) barrel that could fire M118 and M118LR 7.62×51mm NATO rounds and had a quick detachable sound suppressor mount. An 11.35 in (288 mm) free-floating handguard rail system allowed mounting accessories. Flip-up front sights and adjustable back-up iron sights were added, and an M16A2 stock and pistol grip were used.
Beginning in mid-2011, SOCOM began divesting the Mk 11 Mod 0 from their inventory and replacing it with the SSR Mk 20, the sniper variant of the FN SCAR. The Mk 11 is to be completely replaced by 2017.
KAC SR-25 Design
The SR-25 enhanced match rifle utilizes the newer URX II Picatinny-Weaver rail system, rather than the older Mk 11 free-floating RAS, on the top of the receiver to accept different scope mounts or a carrying handle with iron sights (front sight mounted on the rail located on the forward end of the non-modular handguard). The match version is designed to shoot at a precision of 0.5 minutes of angle, which corresponds to 0.5-inch (13 mm) groups at 100 yards (91 m).
The Mk 11 Mod 0 system is chambered for 7.62×51mm NATO, and is designed for match-grade ammunition. The Mk 11 system includes the rifle, 20 round box magazines, QD (Quick Detachable) scope rings, Leupold Mark 4 Mil-dot riflescope, Harris swivel-base bipod on a Knight’s mount, and QD sound suppressor, which is also manufactured by Knight’s Armament Co. Flip-up BUIS (Back up iron sights) are attached to the modified gas block and upper receiver.
The Mk 11 Mod 0 utilizes an Obermeyer 20 in (510 mm) match target barrel, along with a RAS (Rail Accessory System) fore-end made by KAC, consisting of an 11.35 in (288 mm) long match fore-end. The RAS allows for quick attachment/detachment of MIL-STD-1913 components. The aluminum fore-end makes no contact with the barrel forward of the receiver, allowing for extreme accuracy. The Mk 11 Mod 0 has an empty weight of 15.3 lb (6.9 kg), and an overall length of 45.4 in (115 cm). The civilian version, using the longer 24 in (610 mm) match barrel, is guaranteed to produce groupings of less than 1 in (25 mm) at 100 yd (91 m), or 0.3 angular mil, using factory match loads.
During the Iraq War, the United States Marine Corps ordered 180 Mk 11 Mod 1 rifles. These were Mk 11s equipped with the upper receiver of the M110 Semi-Automatic Sniper System. The M110 upper gave the Mk 11 Mod 1 a URX modular rail system and a flash suppressor on the barrel. These saw limited use before they were phased out when the Marines chose to purchase the Mk 11 Mod 2, which was simply the USSOCOM and U.S. Navy designation for the complete M110 rifle.
The new SR-25 Enhanced Match (E.M.) Carbine is very similar to the KAC M110 Semi-Automatic Sniper System, though the M110 utilizes the newer URX Rail system, a length-adjustable fixed buttstock, and an integrated flash suppressor. Starting late 2011, USMC snipers will replace Mk 11 Mod 0 rifles with the M110 on a one-for-one basis.
